hydrophone

HUMPBACK WHALE

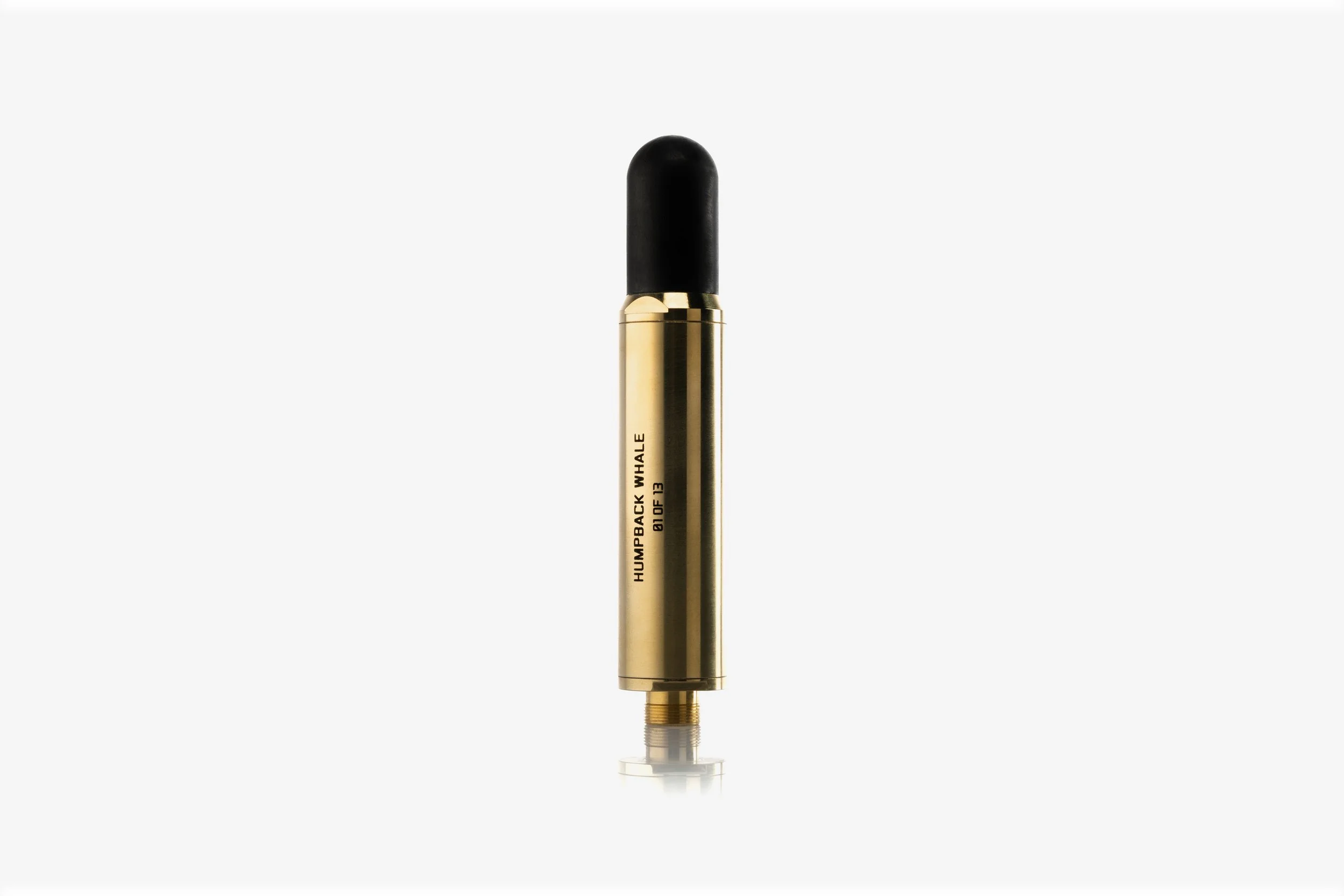

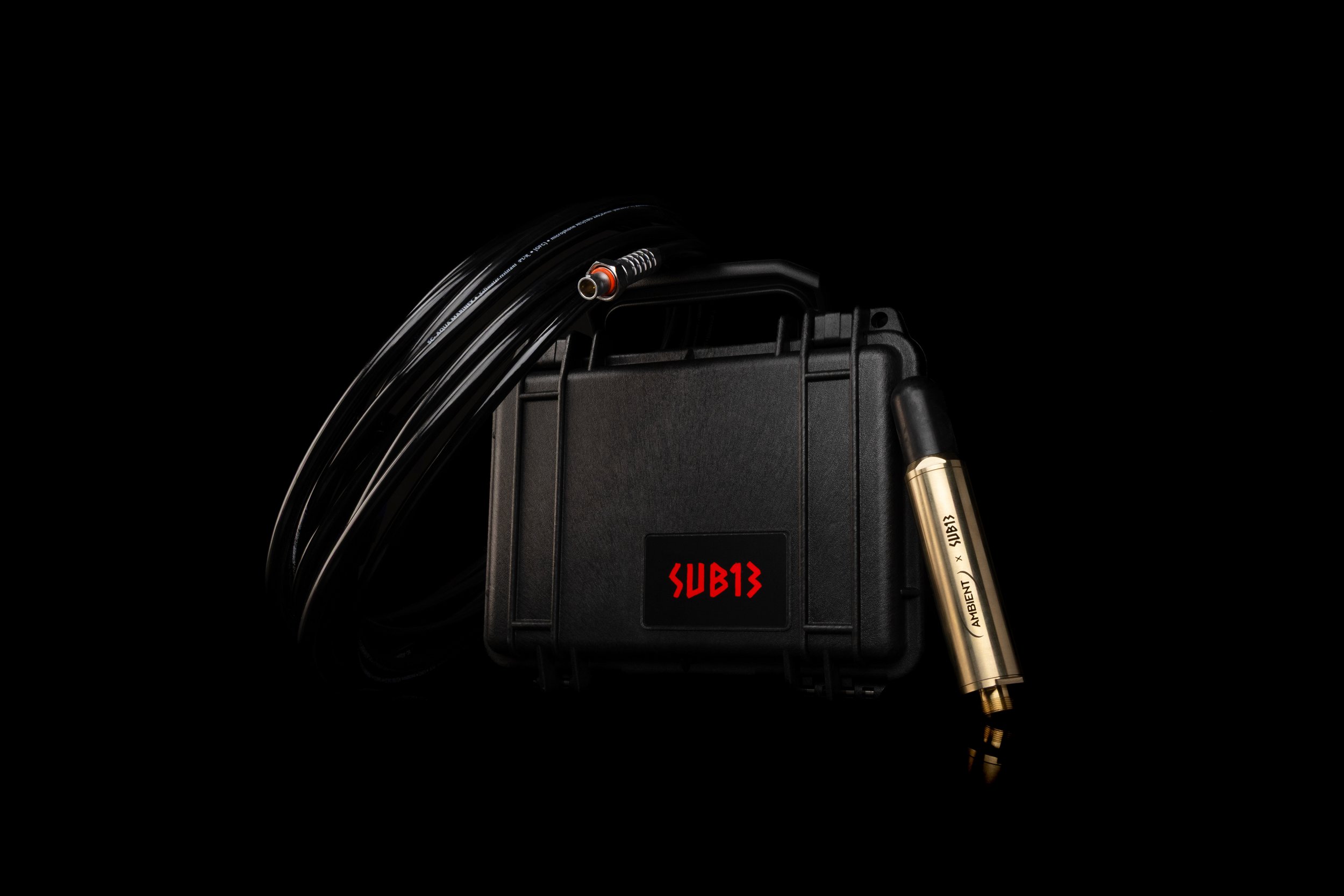

SUB13 Humpback Whale Hydrophone

Developed in partnership with Ambient specifically for humpback whale song. Low frequency response and sensitivity have been engineered to reveal the full character and scale of humpback whale song without compromising the ability to record across a wider frequency range, extending beyond humpback whales.

Connect to a recording device or share live audio through a speaker or headphones.

Production Run of 13 units.

Refining the ASF-1 MKII hydrophone for low frequency recording where humpback whale vocalisations sit.

Frequency response and sensitivity in the 7 Hz to 50 Hz range have been refined, allowing the full character and scale of humpback whale song without compromising the ability to record across a much wider frequency range.

In a world where we continue to steal precious moments from wildlife, the ability to simply listen feels increasingly important

7 Hz to 90 kHz with an infrasound-optimised roll-off filter.
Omnidirectional.
-192dB re 1V/μPa
48V Phantom.

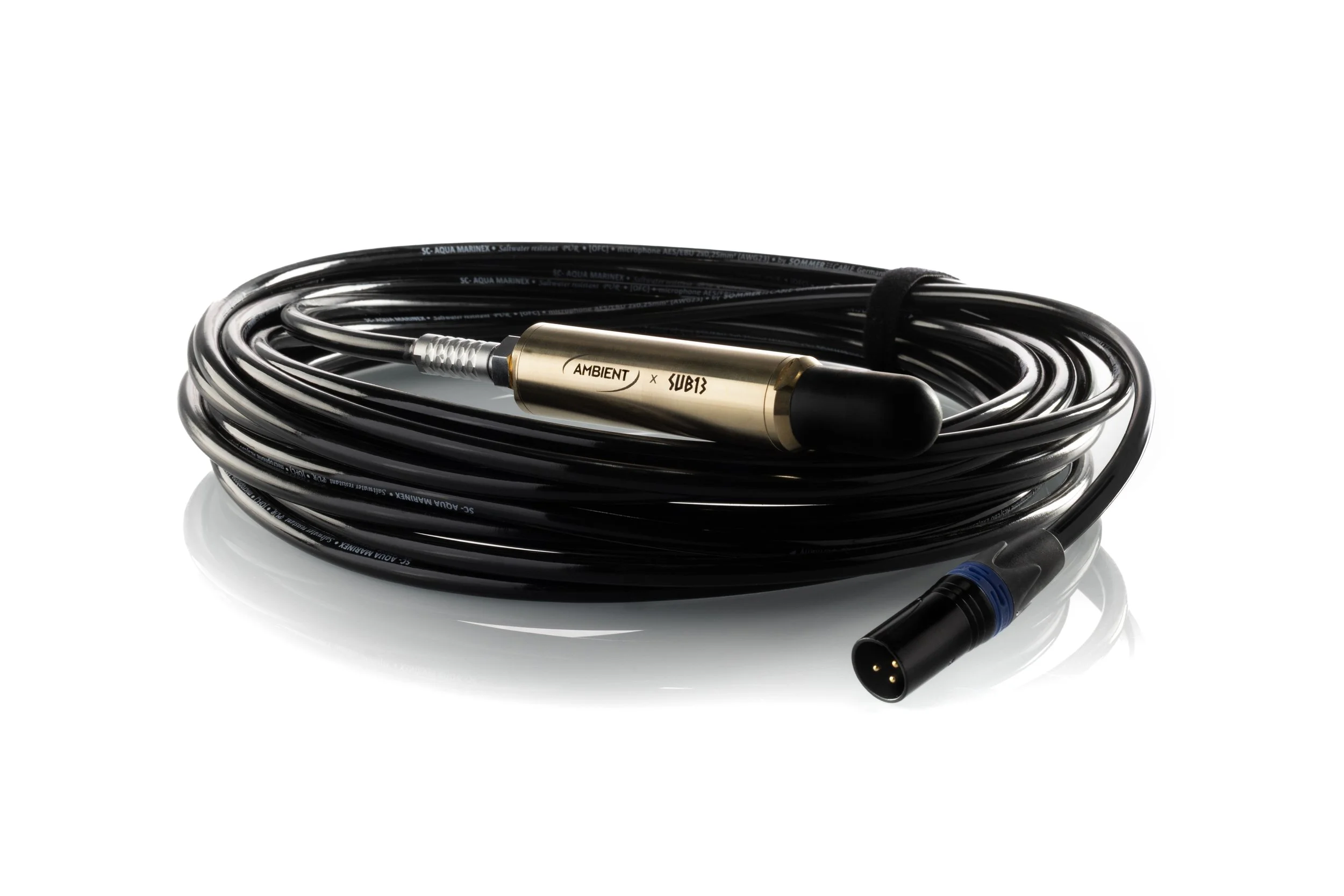

10 m / 32.8 ft NBR polyurethane underwater cable with sealed AHS underwater connector.
Production Run of 13 units.

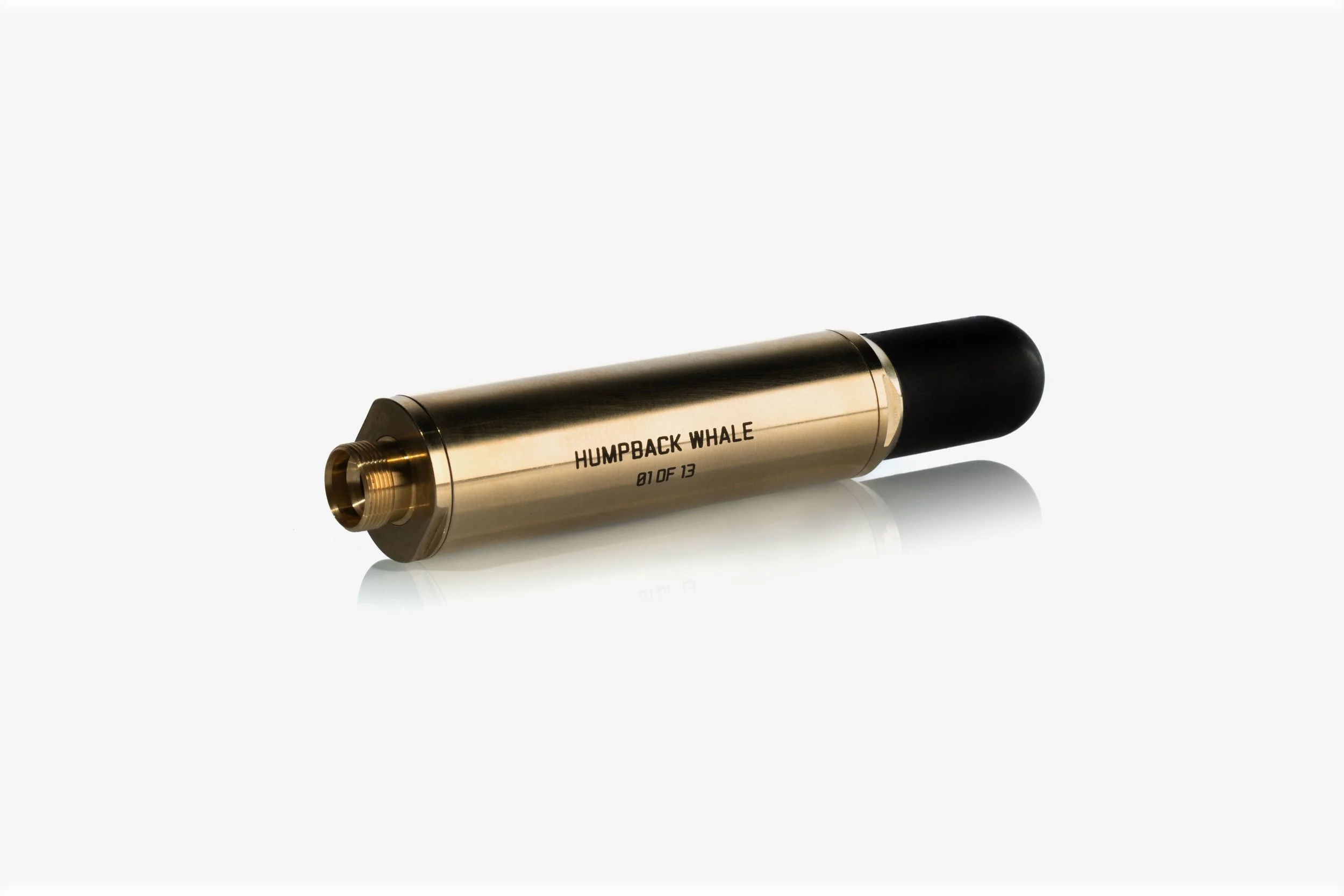

Individually engraved and numbered 01 to 13.
-5°C to +50°C / 23°F to 122°F
100 m / 328 ft
H × W 180 mm × 25 mm / 7.1 in × 1 in
270 g without cable.

“In a world where we continue to steal precious moments from wildlife, the ability to simply listen feels increasingly important.”

hydrophone

HUMPBACK WHALE

FREQUENCY RESPONSE

POLAR PATTERN

SENSITIVITY

POWER SUPPLY

CABLE

PRODUCTION RUN

TEMPERATURE RANGE

DEPTH RATING

SIZE & WEIGHT
