SUB13 Production Run IV for Leica M

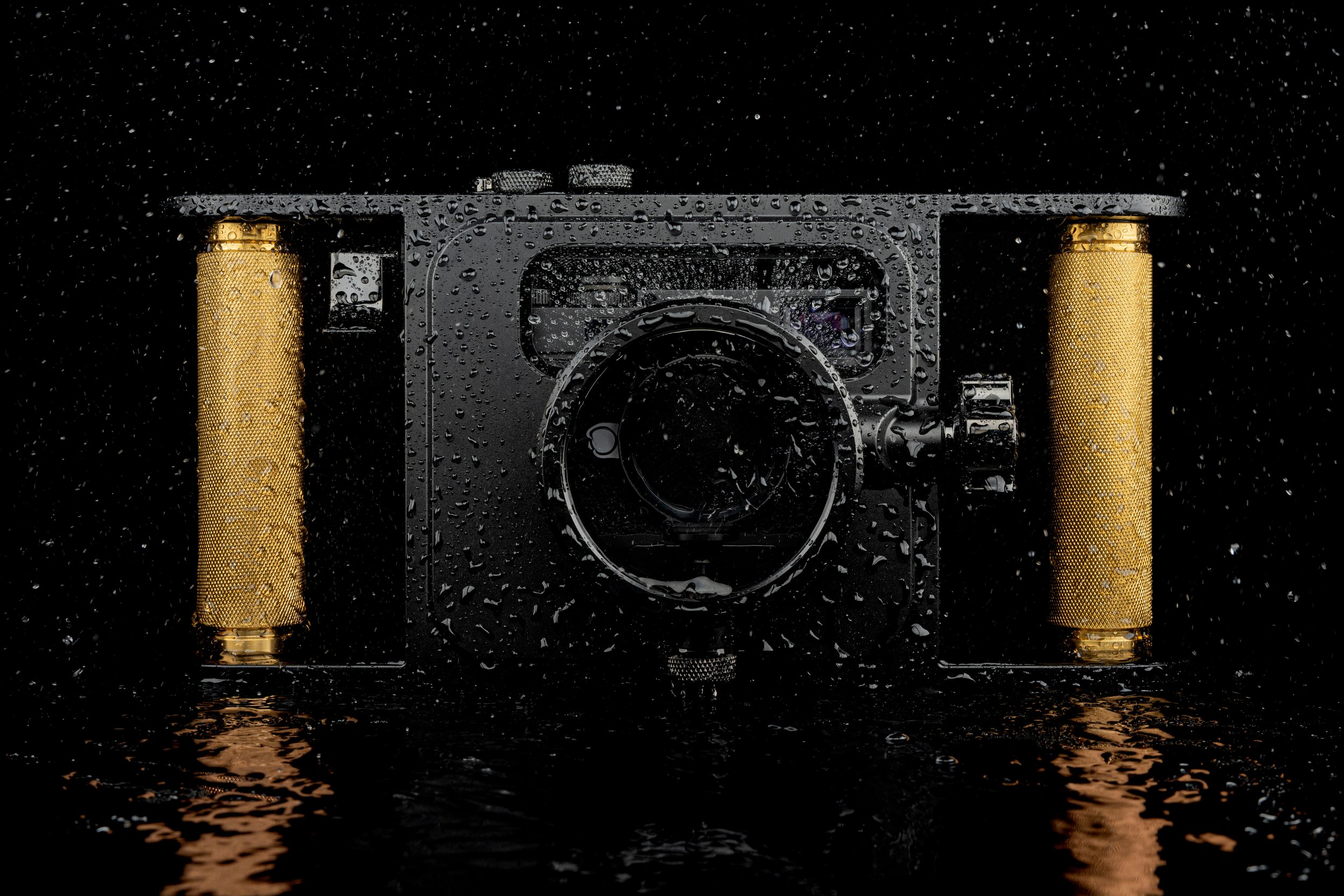

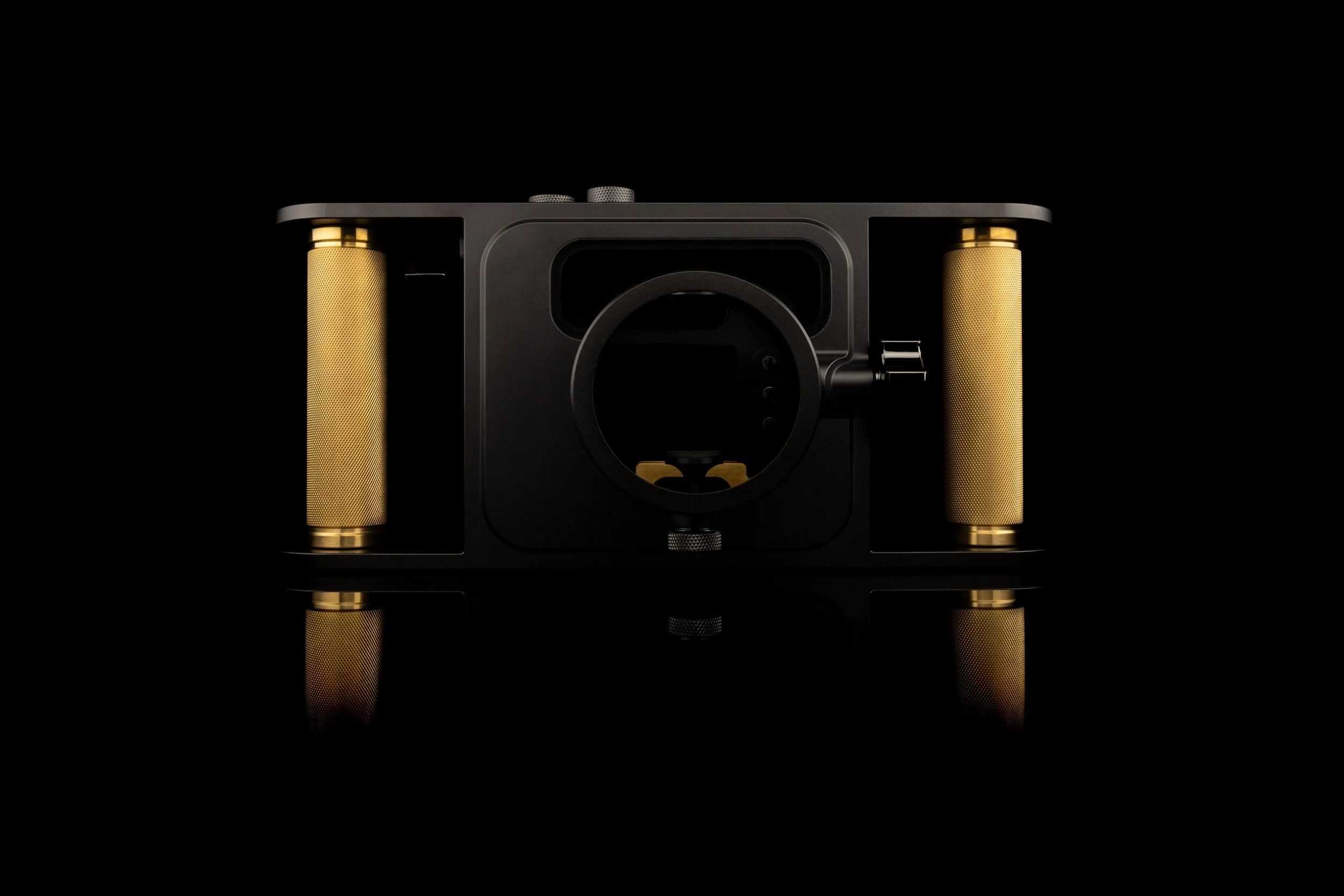

Designed for Leica M system, this underwater housing features a magnified optical glass viewing window, precisely positioned within the integrated front port, providing owners with a clear view of their aperture value for deliberate, accurate adjustment. Machined to exact tolerances and supporting eight Leica M lenses, the housing maintains full manual control while preserving the rangefinder experience. Lightweight black handles are included as standard.

Choosing to spare no detail, SUB13 remains resolute in our pursuit of perfection.

Independently certified by DOER Marine to the maximum recreational scuba depth.

Leica M10 and M11 compatible.

A production run of 13 units.

SUMMICRON-M 28MM F/2 ASPH

SUMMICRON-M 28mm F/2 ASPH NEW

SUMMICRON-M 35mm F/2 ASPH

SUMMILUX-M 35MM F/1.4 ASPH

SUMMILUX-M 35MM F/1.4 ASPH NEW

APO-SUMMICRON-M 35mm F/2 ASPH

SUMMILUX-M 50MM F/1.4 ASPH NEW

APO-SUMMICRON-M 50mm F/2 ASPH

  • Fully Functional Underwater Housing, Specifically Designed for Leica M10 and Leica M11 Cameras.

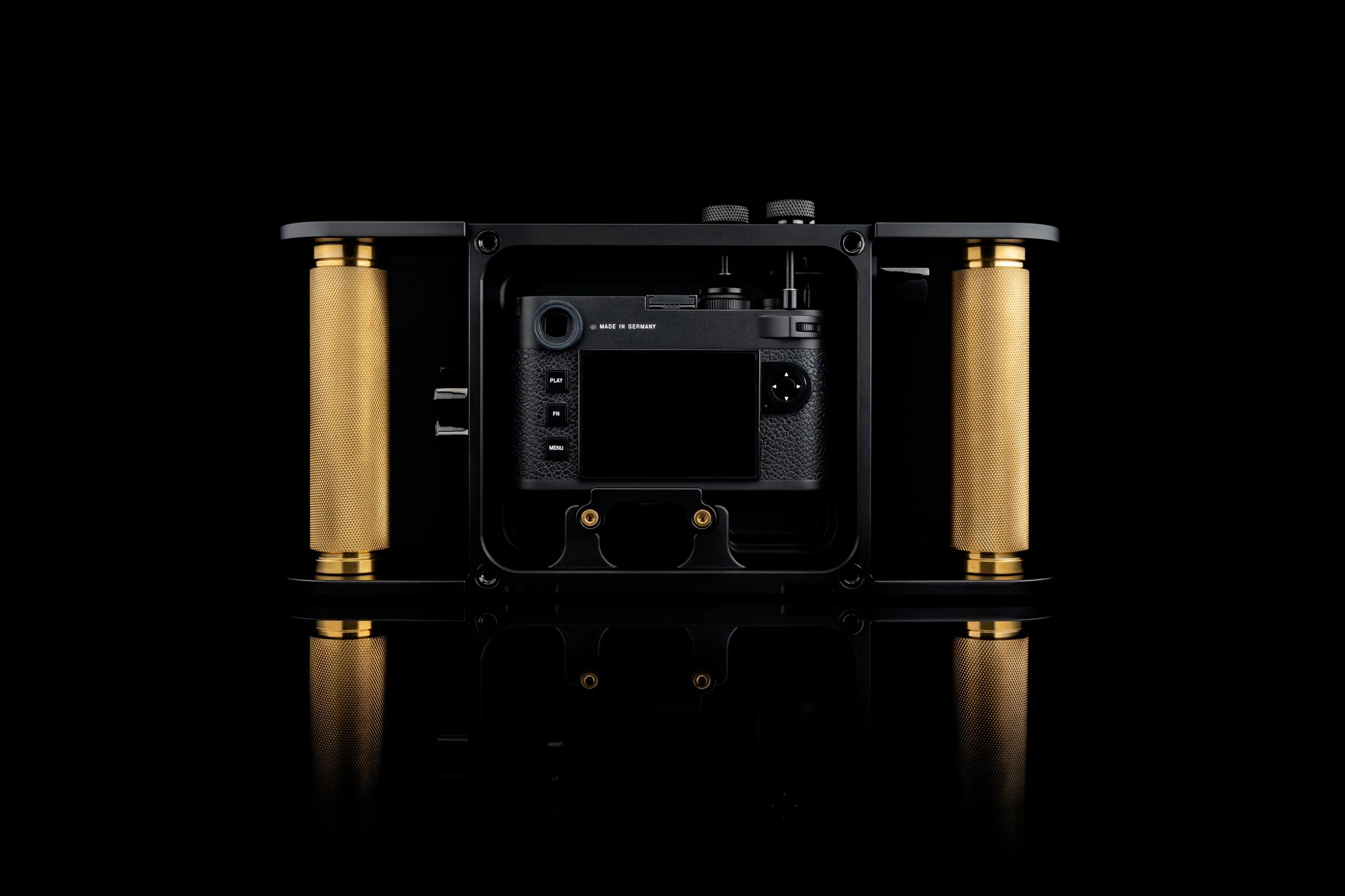

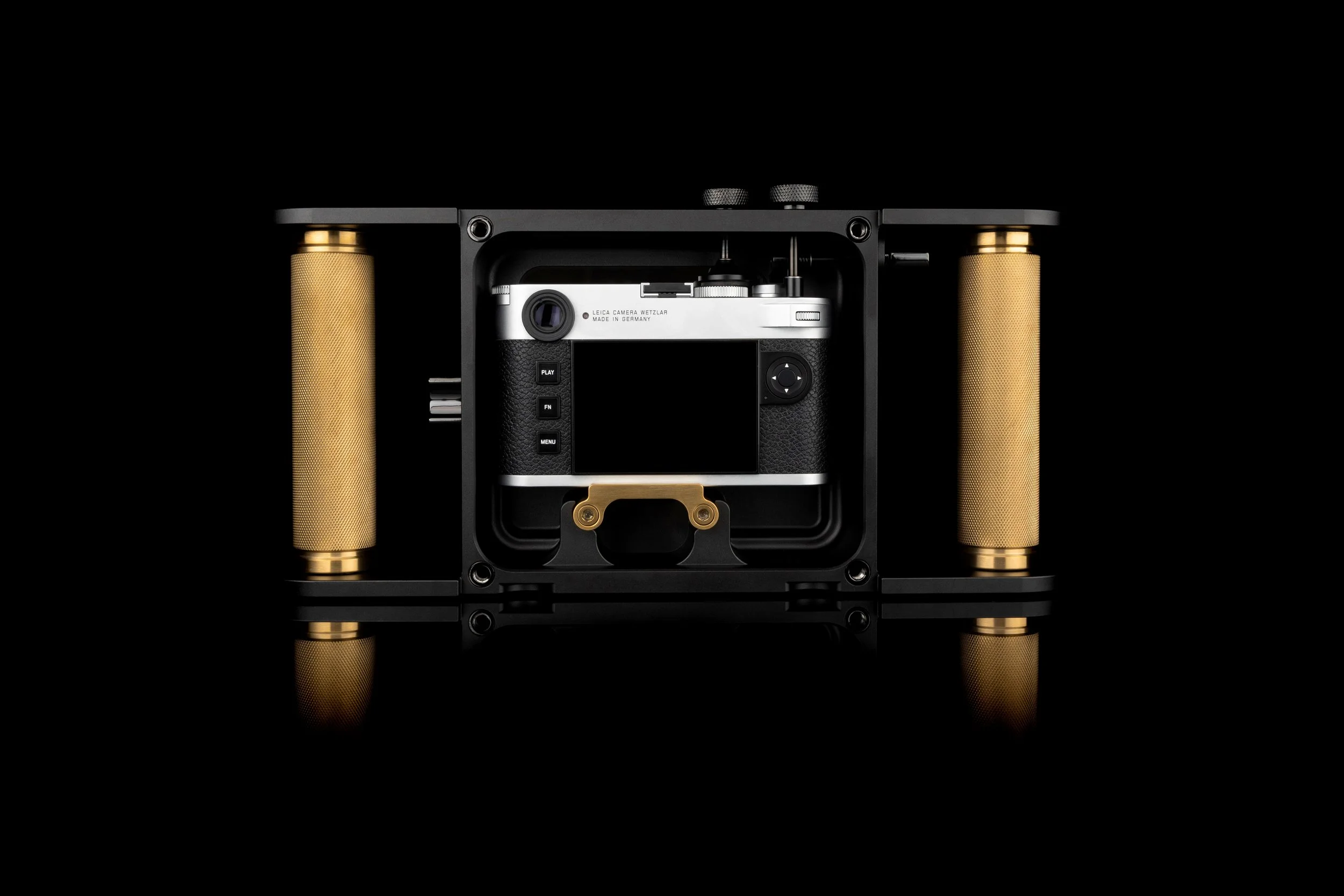

    Main Body Accommodates the M10 and M11, Requiring Only an Additional Baseplate and Backplate for a Seamless Switch Between the Two Cameras.

    Full Control over Manual Focus and Manual Aperture Settings.

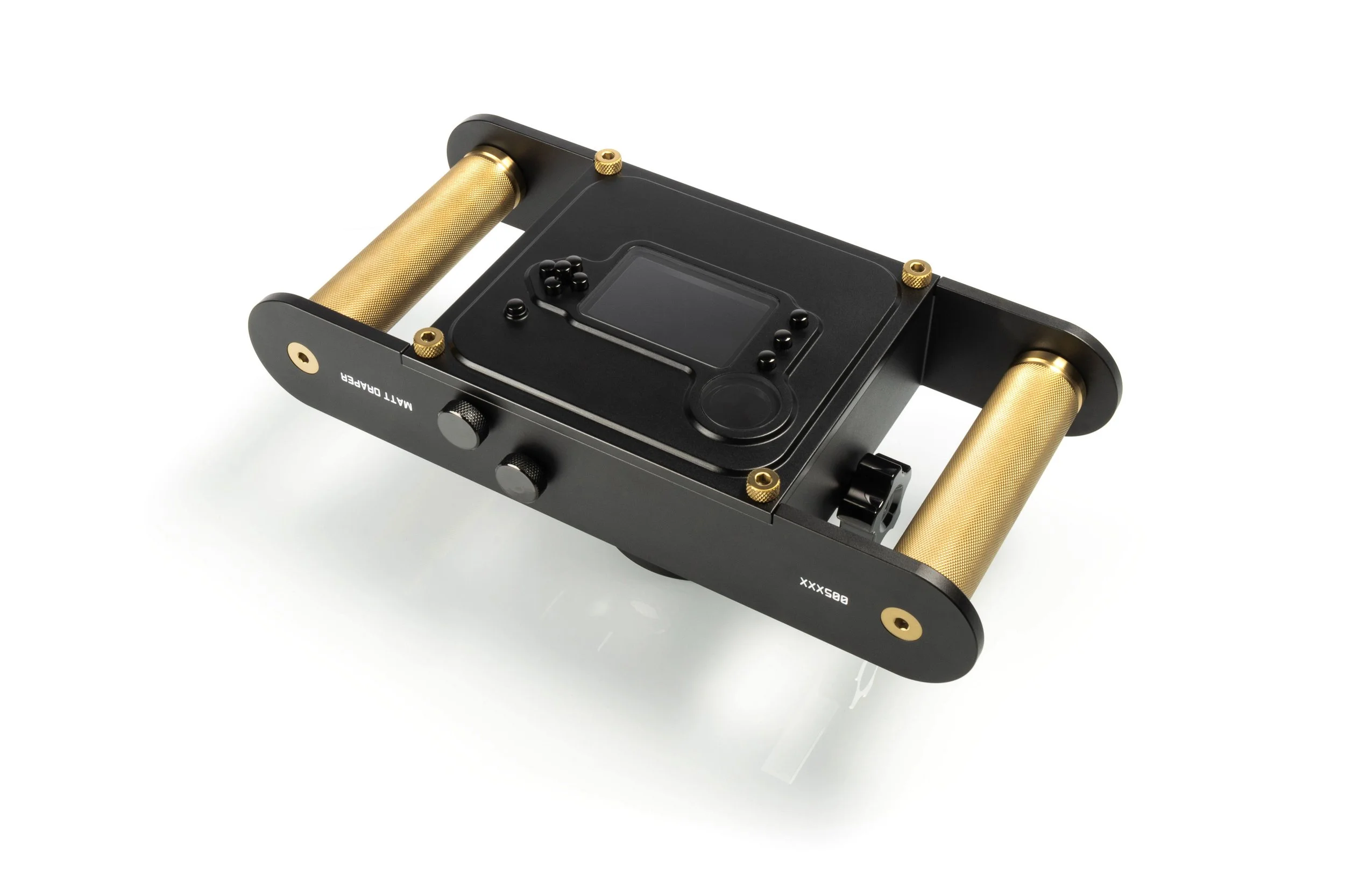

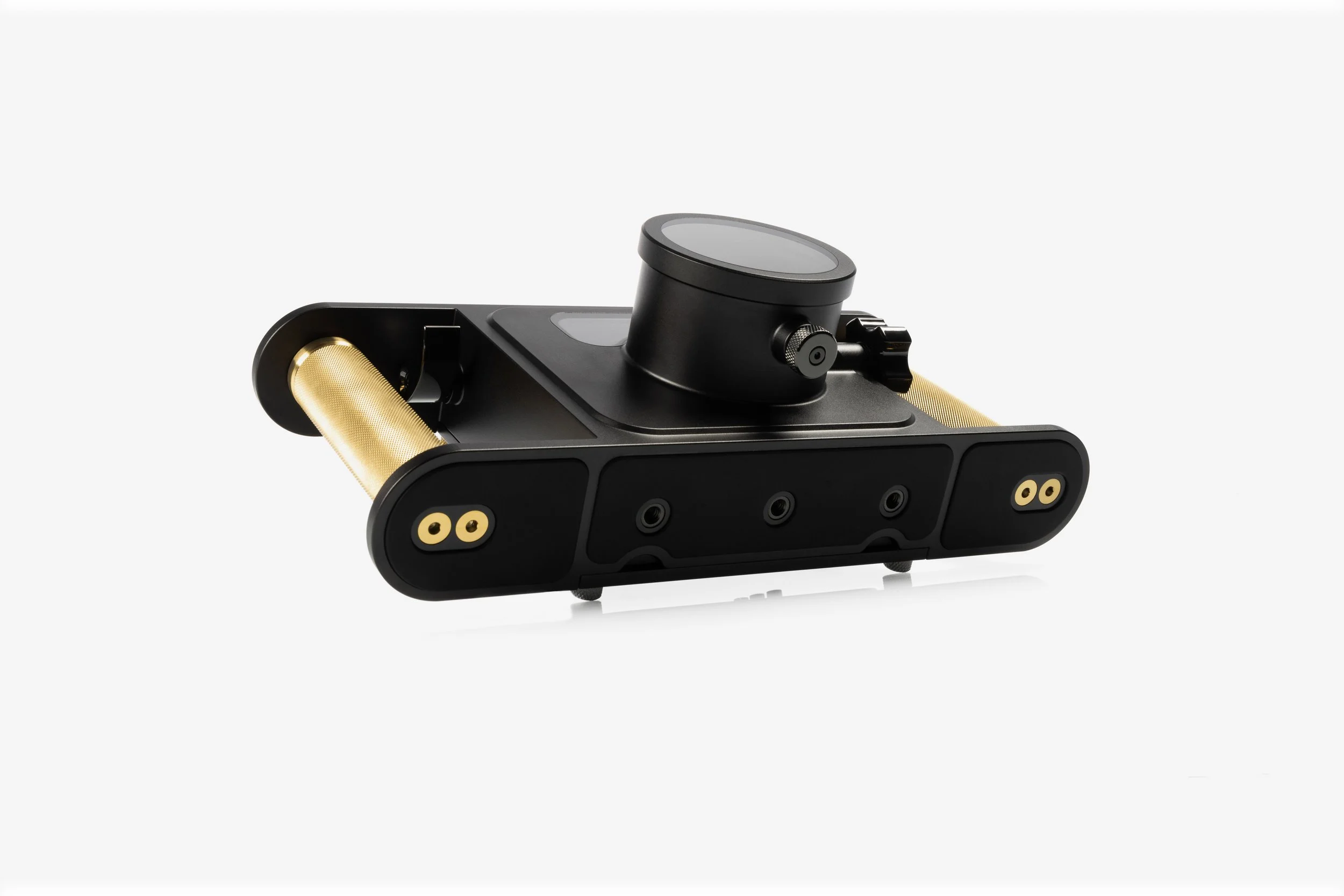

  • Main Body, Integrated Front Port, and Backplate, All Precision CNC Machined from High-Grade Billet 6061 Aluminum, Sandblasted, and Finished in Hard Anodised Black Coating.

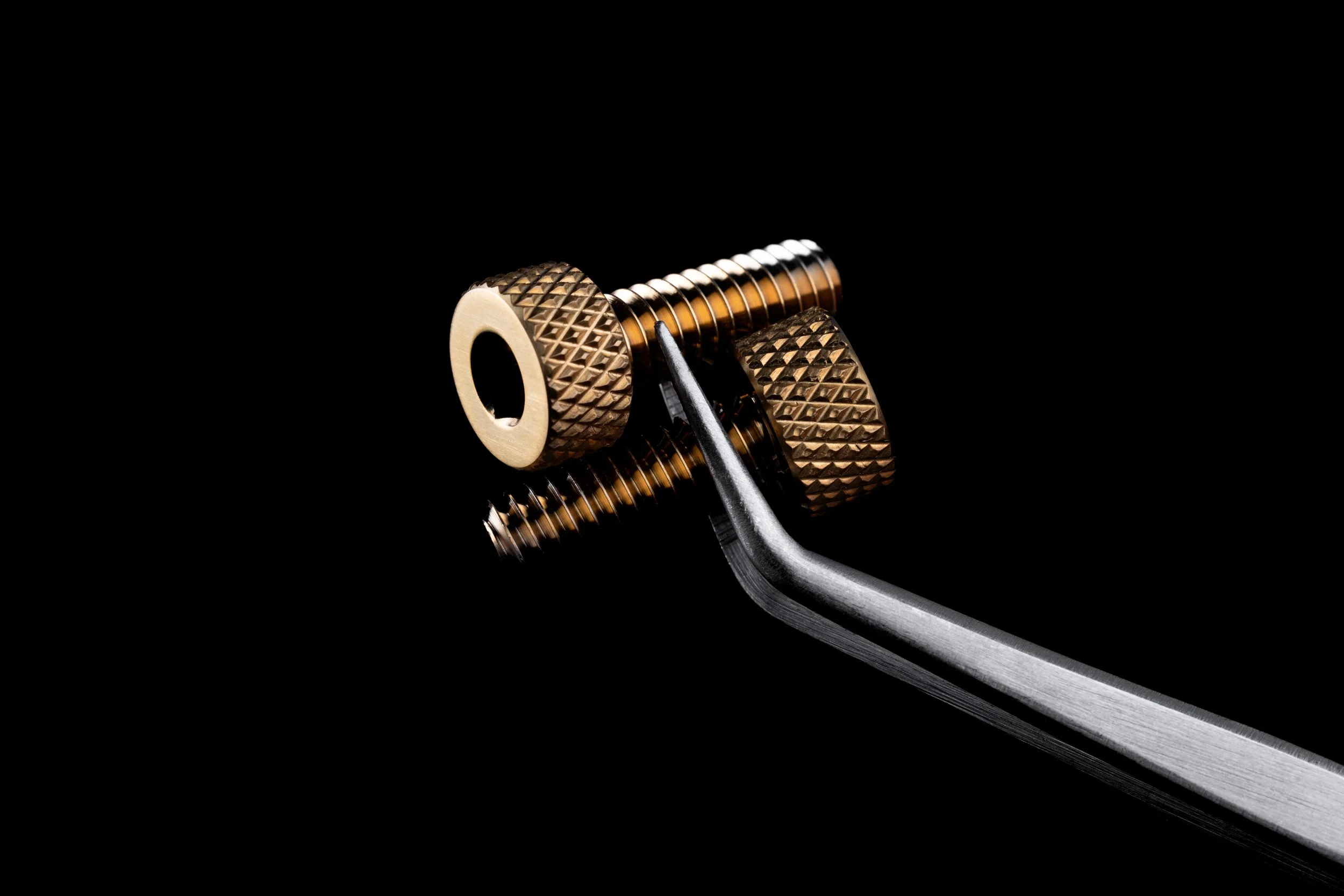

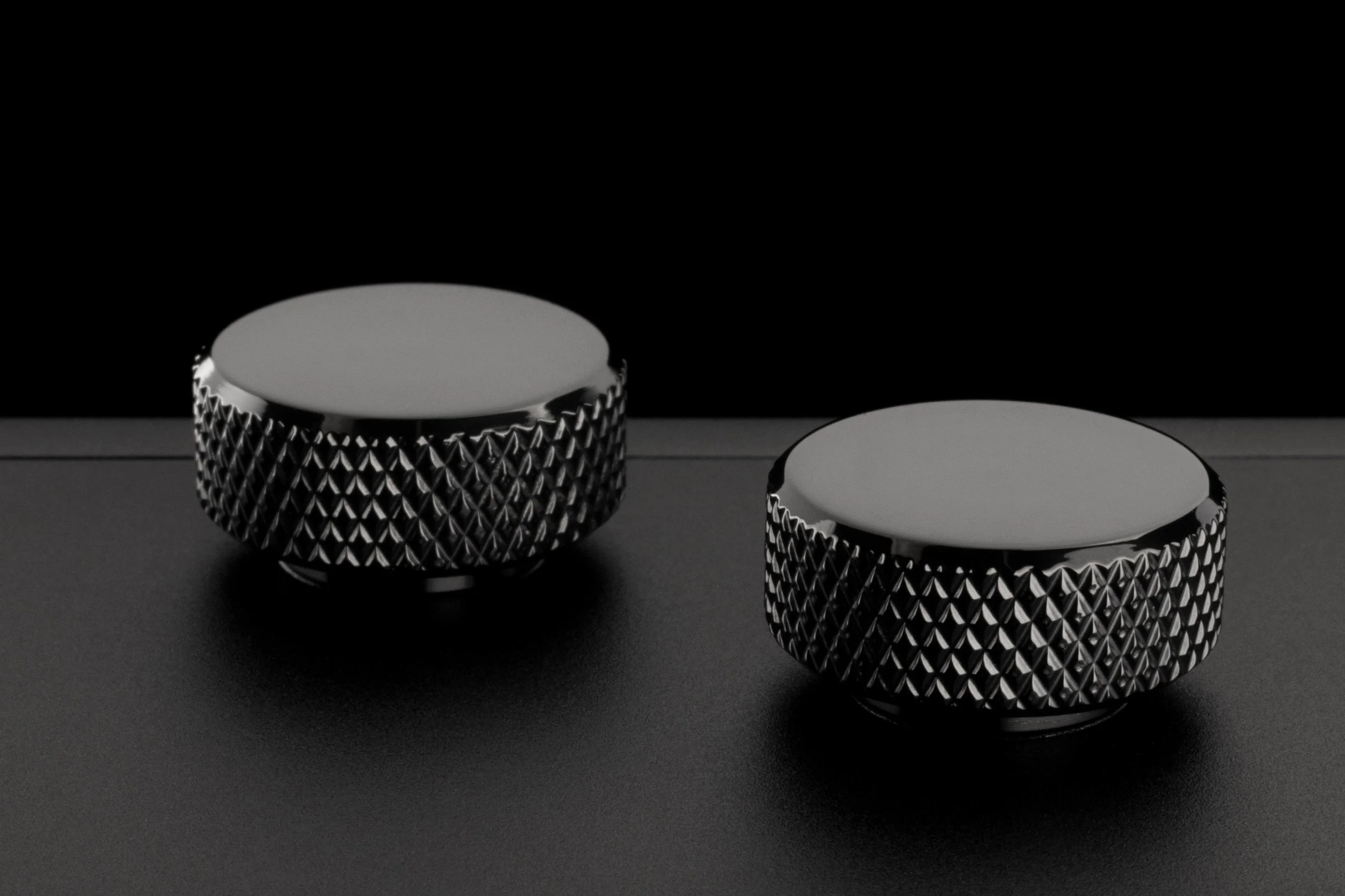

  • PVD-Coated Solid Titanium Hardware for Exceptional Durability and Corrosion Resistance. Each Piece of Hardware Is Meticulously Designed and Crafted to Achieve the Perfect Balance between Form and Function, from Knurled Handles, Bolts, and Dials to Sleek Pushers, Even Extending to the Helicoil Thread Inserts.

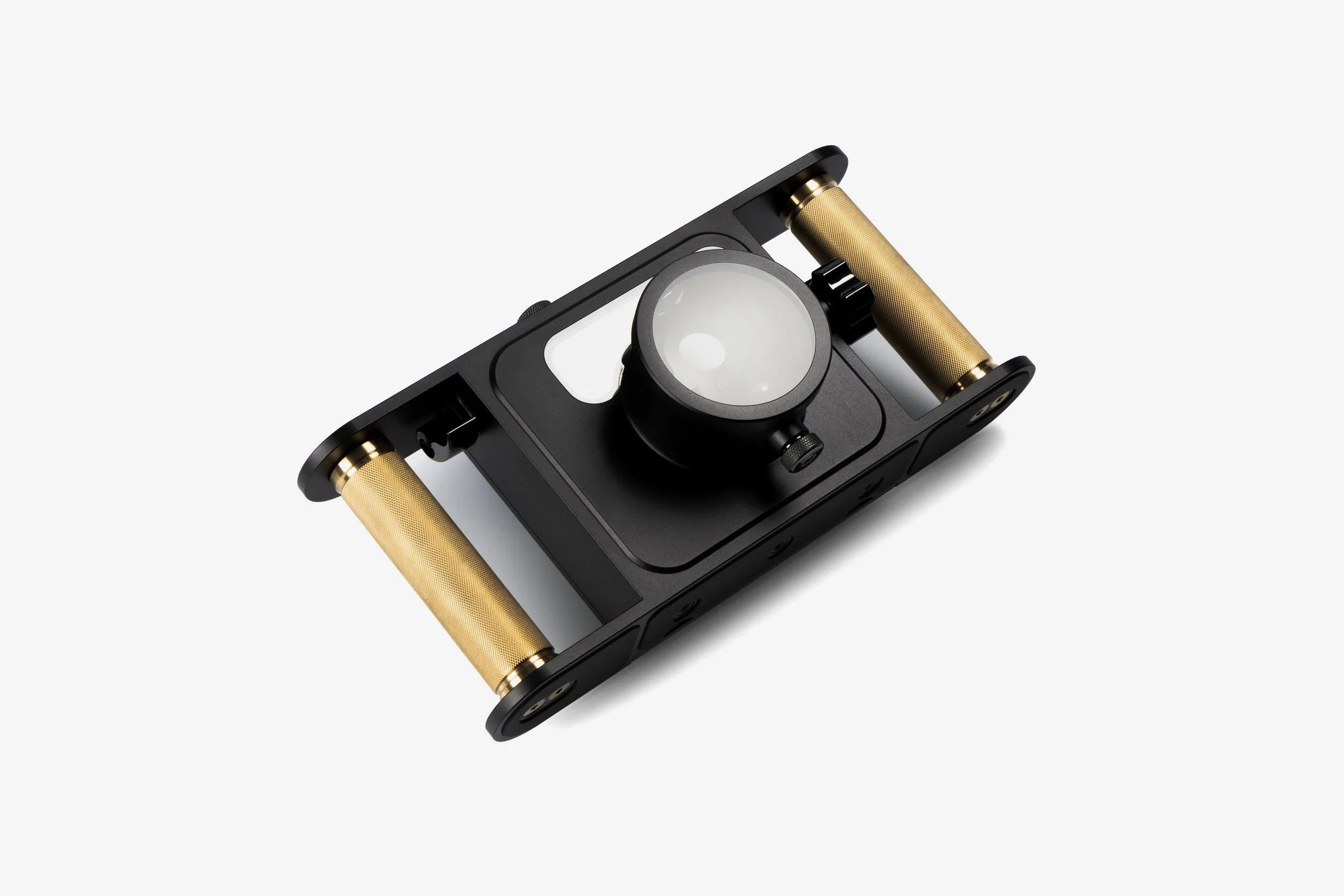

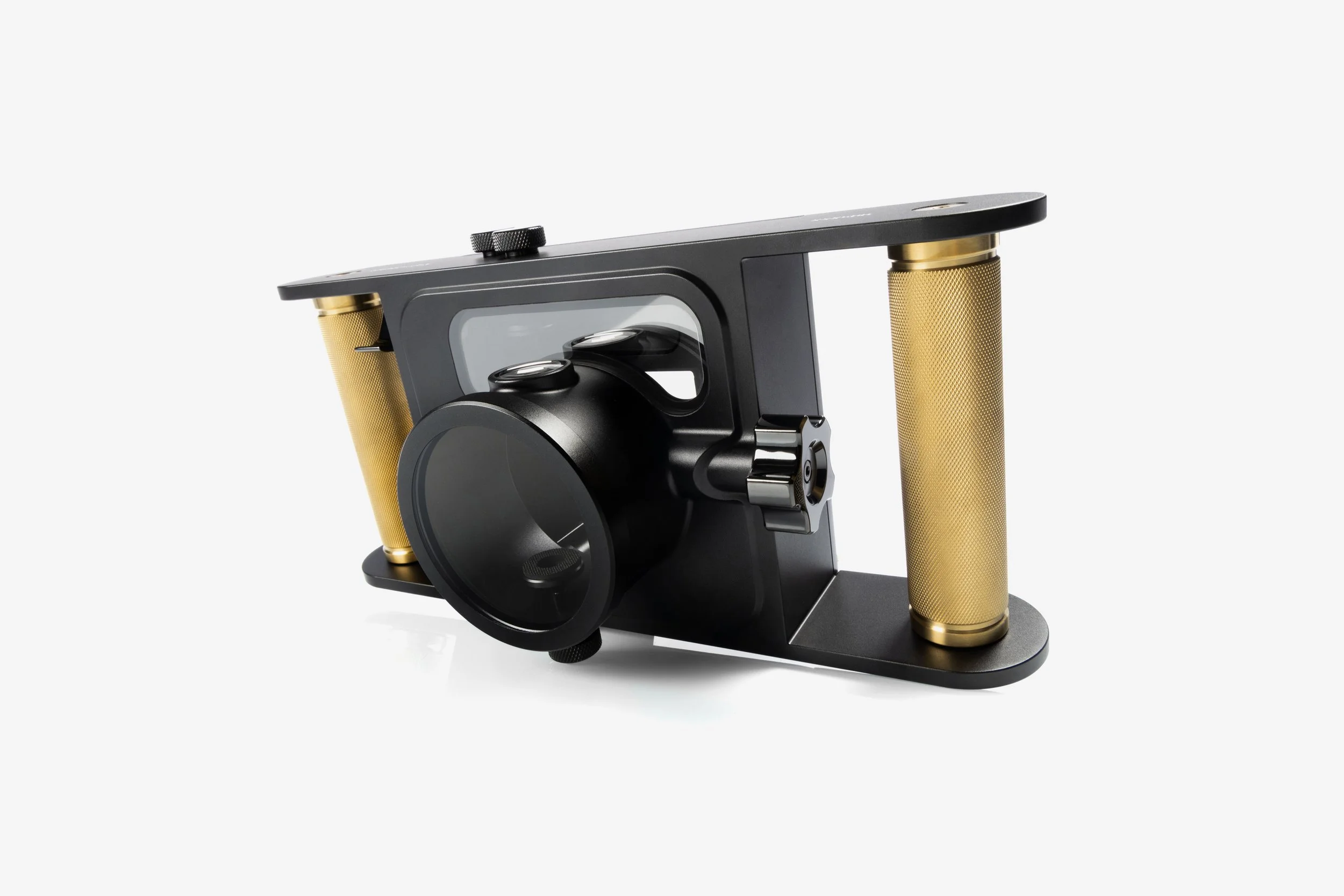

  • Flat Port and Custom-Fitted Viewing Windows Equipped with High-Quality Optical Crystal Glass for Uncompromised Clarity.

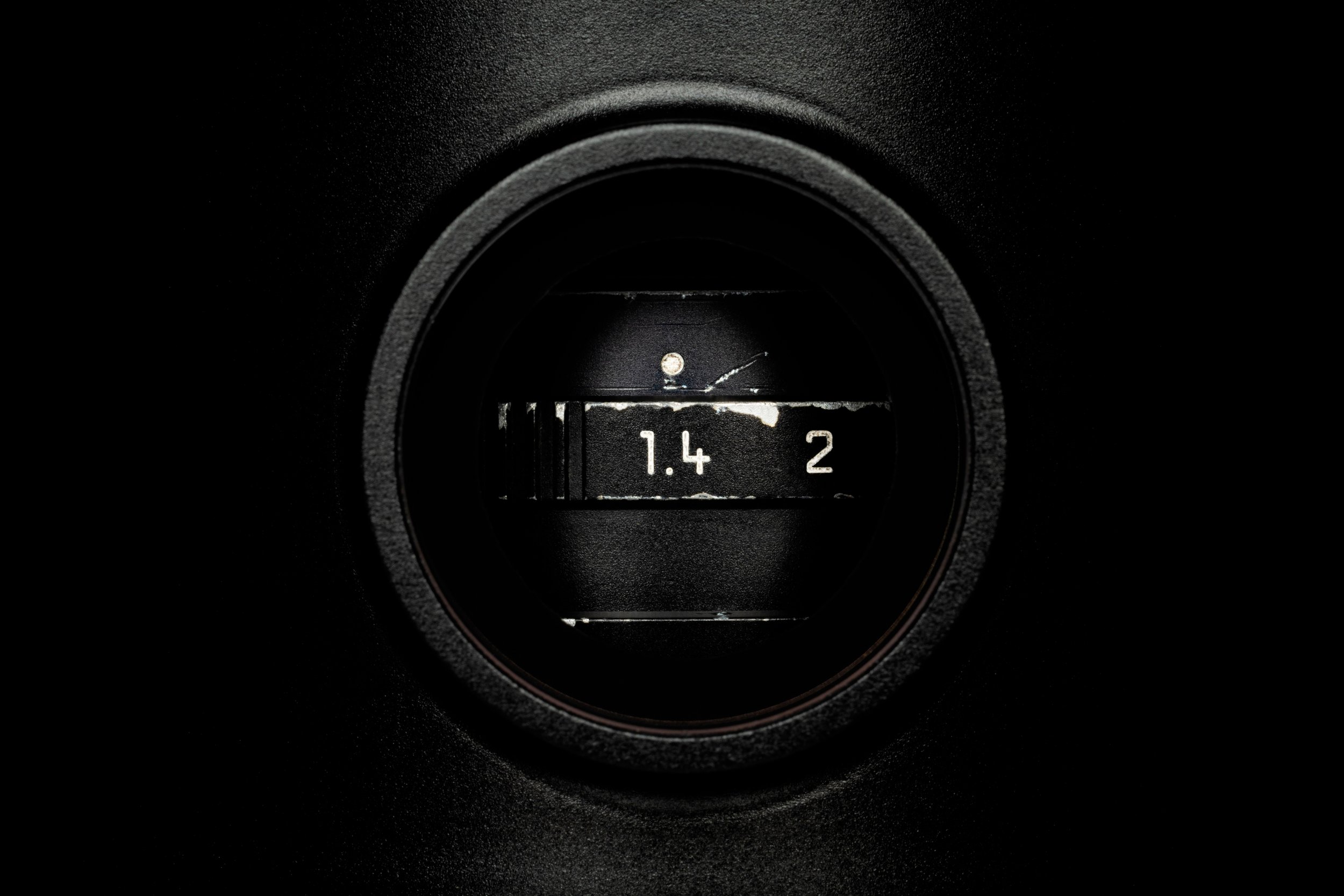

    Features a 2× Magnified Aperture Viewing Window for Easy Adjustments. This Circular, Convex Glass Window Serves an Important Technical Purpose and Presents Engineering and Manufacturing Complexity.

    Flat Port Glass Is AR-Coated, Inside Only.

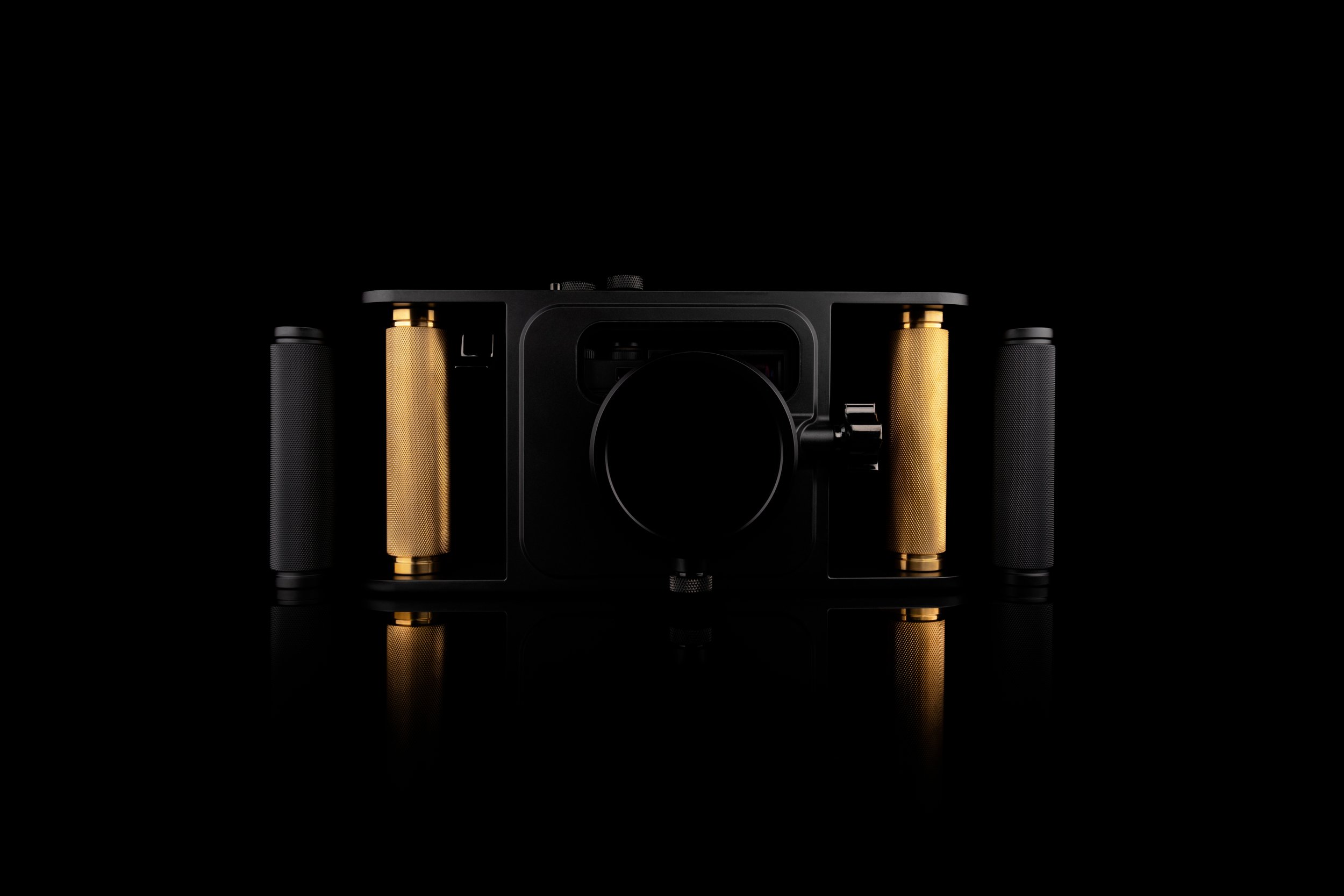

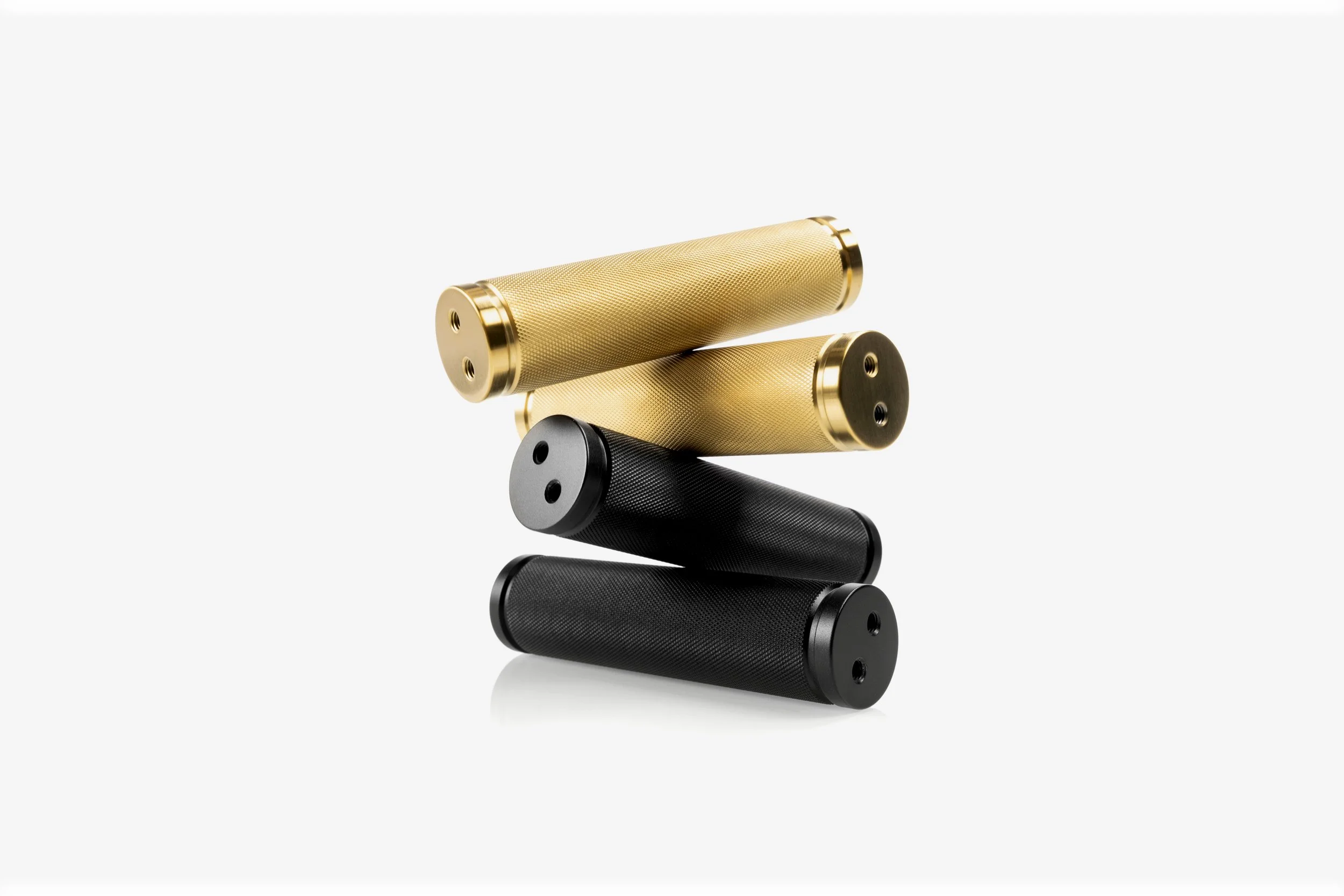

  • Lightweight Black Aluminium Handles Included as an Alternative to Gold PVD-Coated Titanium, Providing a 400g Reduction in Weight and a Stealthier Appearance.

  • Two Deliberately Placed and Sized Finger Grooves Enable Effortless Housing Breakdown when Pressurised.

    Three Individual Tripod Mounts Support Underwater Photography and Versatile Attachment Options, Ensuring Flexibility for Future Accessories and Adaptability to Advancing Technology.

    Non-Slip Rubber Inserts Protect the Underside of Your Housing and Other Surfaces while Ensuring Stability Onboard Watercraft.

  • Ships in a Dedicated Pelican 1507 Air Hard Case, Complete with CNC-Machined Storage Compartment. Protects During Transit, While Minimising Single Use Packaging and Lowering Our Carbon Footprint.

  • All Necessary Tools Provided:

    5 mm Hex Key

    3 mm Hex Key

    1.5 mm Hex Key

    Delrin Lens Gear

    Delrin Battery Release

    Tef-Gel

    Silicone Grease

    Spare Main O-Ring

    The M11 Baseplate Features a Machined Slot, Allowing Battery Removal and Replacement While the Camera Remains Attached. The Provided Tool Engages the Battery Release Lever.

  • Leica M Production Runs Are Strictly Limited to 13 Units.

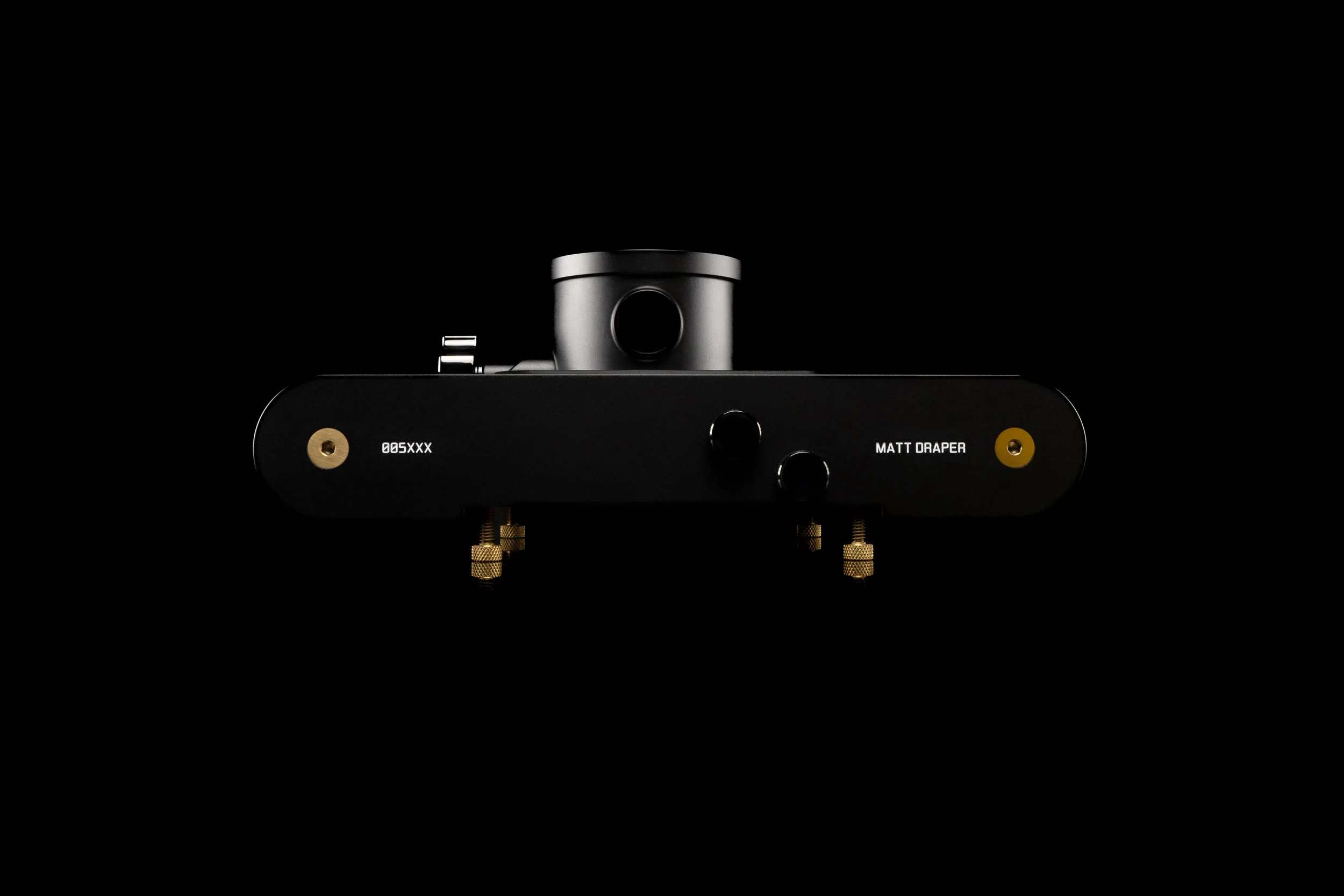

    Each Individual M Housing Is Identified by a Unique Serial Number, Laser Engraved and Paint-Filled in White.

    Raw-Machine Finishes and XXX Serial Numbers Are Exclusively Reserved for Prototypes.

  • Independently Certified by DOER Marine to the Maximum Recreational Scuba Diving Depth of 40 m / 130 ft.

    A Prototype Unit from Production Run IV Was Pressure Tested to Failure, Reaching 136.98 m / 449.31 ft.

  • 2.8 kg / 6 lb With Aluminium Handles.

    3.2 kg / 7 lb With Titanium Handles

    Designed and Engineered for Negative Buoyancy.

“I spent years dragging half-functioning prototypes through expeditions, fully committed as my art regressed — forming a design for the M which preserves exactly what makes it so special. It’s manual. It’s mechanical. It forces you to slow down and find rhythm in the challenge. It’s honest. Thousands of hours, endless revisions, a standard only this team can sustain. Live in the detail.”

— Matt Draper
